The SWB Tourlander. Perfect for a quick getaway, this SWB Tourer has the capacity to keep you fully sustained for at least a week.


With the convenience of an everyday vehicle fitted with all the comforts of a motorhome the Tourlander is the most fully equipped SWB camper in existence. The Short Wheel Base Tourlander offers the same concealed toilet system with built in privacy as the Long Wheel Base Transtourer.

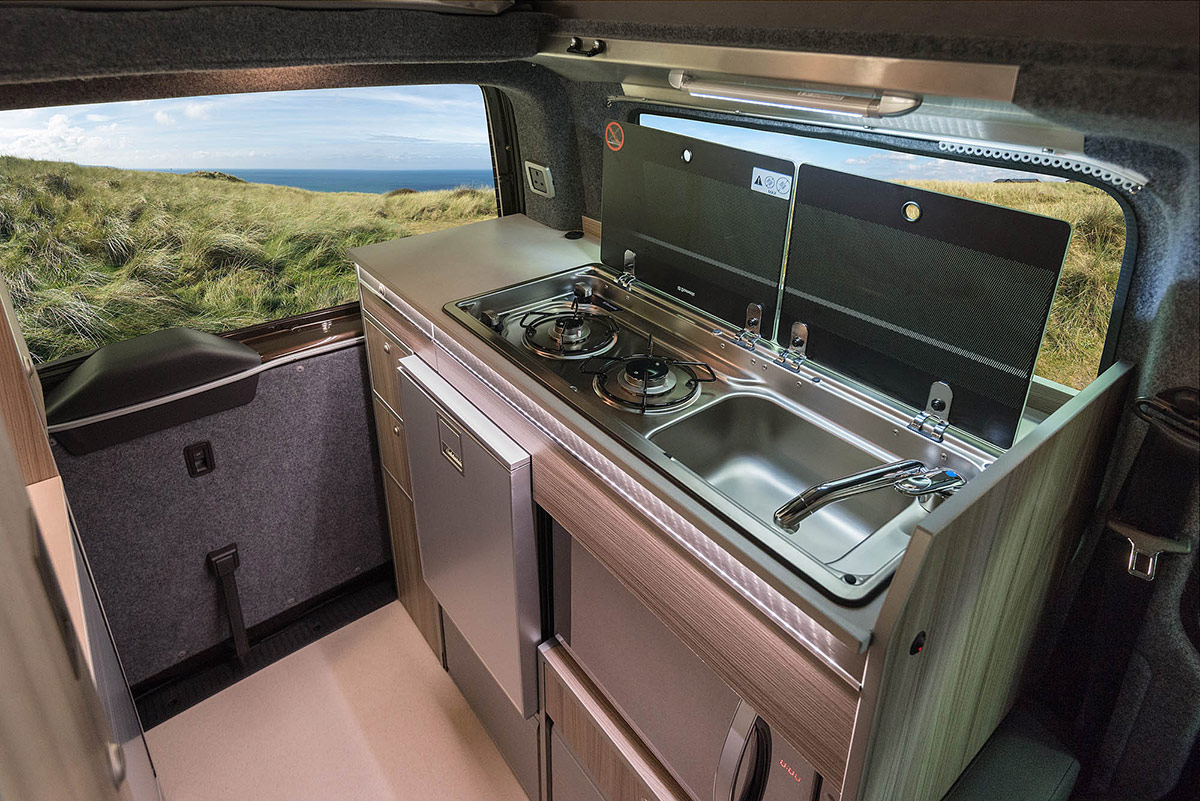

Clever design has created an advanced and fully functioning kitchen, combined with a sophisticated storage system that allows for all necessities to be easily accessible and close at hand.

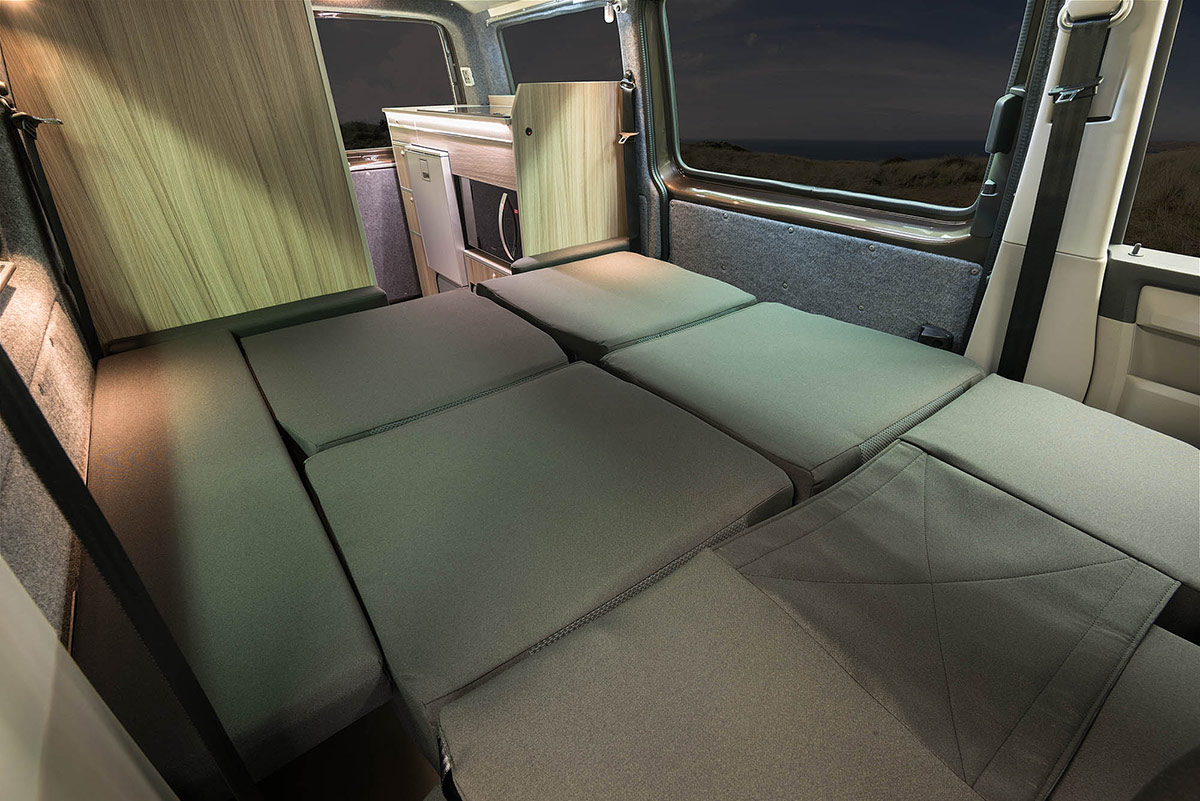

We have created flexible sleeping arrangements offering a choice of either twin single beds or a full width double bed as well as creating at least 2 day time modes including a lounge mode. The U shaped lounge area allows you and guests to sit around the table without interfering with galley activity.

The Tourlander can even be configured in the rear left hand corner to carry outside luxury table & chairs or extra full height storage.

Concealed hygienic sit down toilet compartment
Suitable for single or twin side loading doors
Split living & galley area with raised fridge
Configurable with foldup table & chairs or storage
Enough storage for at least a weeks clothing and food
2 & 4 Berth with 4 driving seats
Single & full width bed mode

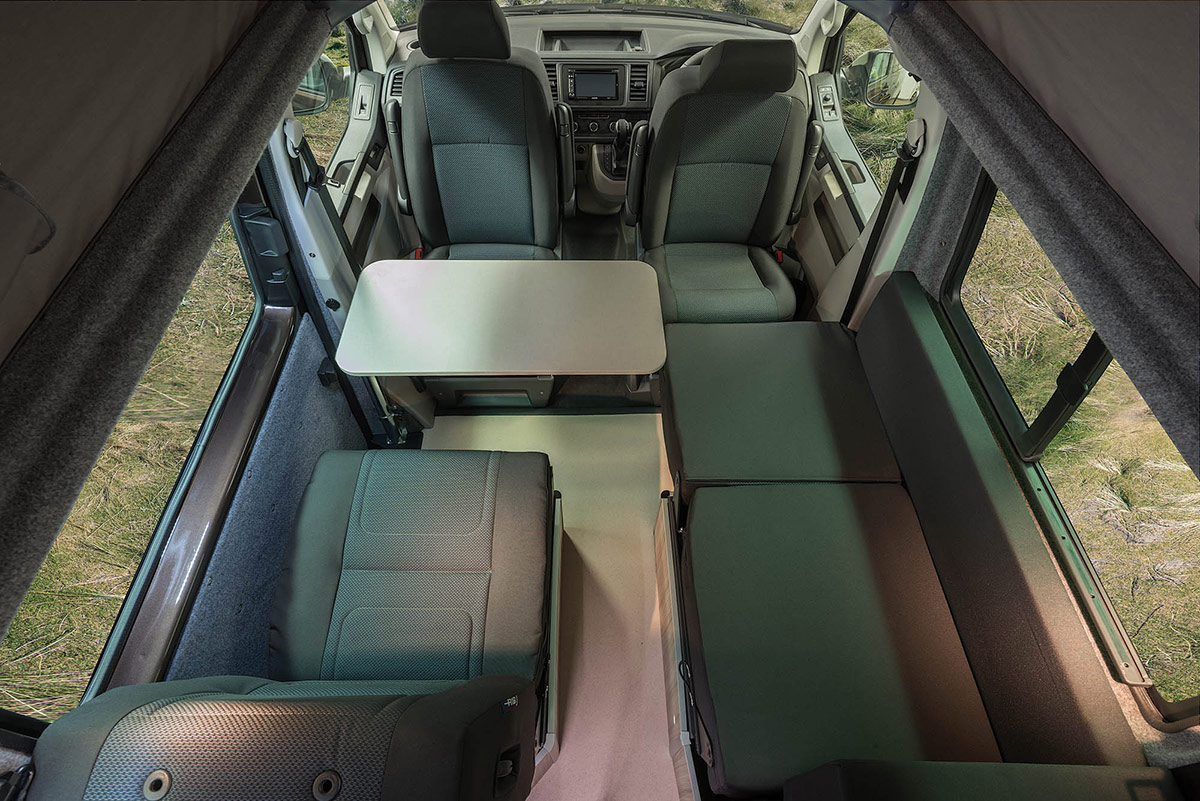

Lounge mode with 5 seats
Easily adaptable to all situations
Built to your specification



Standard SWB Tourlander Specifications


Reimo superflat high lift rear open elevating roof featuring enlarged opening rear window and midge proof netting throughout and Xtreme isolating insulation layer in core of roof.
Right hand VW heat insulated privacy sliding window.
Left hand VW heat insulated privacy fixed window.
Left hand rear side panel VW heat insulated privacy window.
Carpet lined & thoroughly insulated.
2x 60CM Rib Neptune TUV approved pull/crash tested seatbeds with 2x 3 point seat belts & headrests. Neptunes built with 20cm front/back sliders plus sideways sliders, allowing twin & double bed mode plus easy reclining. Installed to manufacturers standard, reinforced, bonded & wax oiled underneath.
Rib Neptune seatbeds boxed in for bed linen storage with matching laminate & brushed aluminium corners.
18mm WPB ply floor with hard wearing easy to clean Altro safety flooring for excellent longevity.
Thetford C-200CWE cassette sit down toilet with electronic flush, installed in a concealed hygienic compartment accessed by vertical Tambour door.
Waeco CRX-50 12v compressor fridge/freezer with matched metal detailing & chrome embellishment.
Smev 7222 combi unit 2 burner with Piezo electronic ignition and easy off safety gas control valve.
Dedicated gas bottle compartment with easy on/off bottle connector.
2x 12ltr drinking grade water containers contained in a lower compartment accessed by a full width vertical tambour door system.
Table with sliding system & duel corner cut out.
Sargent EC155 240v/12v 12.5amp power management system with remote control both in silver. Remote control panel displays both leisure & vehicle battery levels. Option to switch between batteries with automatic engine battery protection. Engine battery charging function for non-Euro 6 Bluemotion Transporters.
2 matching silver rimmed 240v sockets to be used when hooked up.
1x Twin fast charge USB socket 2.1 & 1.1amp. 1x 12v sockets, 1 mounted on worktop.
1x 120amp Absorbed Glass Mat Battery (AGM - non spillable) other improved features including faster charging and better resistance against discharge damage.
Bright cool white LED switched rotating lamp above hob and sink area.
Bright cool white LED switched rotating lamp above passenger seatbed for table area.
2x warm white LED directional & switched reading lamp in the middle for reading in bed or when in Lounge mode.
1x hygiene touch dimmable warm white LED in the toilet compartment above worktop which can also be used as a night light.
2x vehicle courtesy lamps above side and rear door.
1x large cutlery draw, 1x large plate draw & 2x larder draws in kitchen cabinet.
Floor mounted larder accessed by full width vertical tambour door system under fridge.
Upper larder/miscellaneous storage compartment under sink (if a grill/microwave oven is not selected) accessed by vertical tambour door system.
Large full height sliding wardrobe which doubles up as privacy screen with 4x indestructible clear PETG shelves & 1x lower storage area as standard accessed by pull handle & locking button.
2x separate storage areas located behind & above the toilet compartment. Sargent power management system 240VAC socket located in upper.
All cabinet compartments fully ventilated for heat dispersion and aeration.
2x de-pressurization/breathing vents in rear of vehicle.
Silent Gliss aluminium curtain rail system complete with popper kit mounted ready for curtain installation.
New side door step & full width rear load entry cover plate.
Good internal front cab thermal insulation blinds, set of 3.
Gas safe certificate from inspection by external engineer.
Full handover with training and explanation of use. Useful documents given to support operation.
All documentation and instructions from fitted devices and components as well as completion certificate.



Standard SWB Tourlander layout costs


All prices include fitting & are subject to VAT, technical restraints, & supply. Prices may vary slightly due to currency fluctuations.

£17,100+VAT SWB Tourlander with Reimo rear open elevating roof

£20,520 inclusive of VAT at 20%

£16,250+VAT SWB Tourlander with Reimo rear open elevating roof without VW HIP glass side windows (such as the Kombi as a base vehicle) still included is a left hand rear side panel in matching VW glass.

£19,500 inclusive of VAT at 20%



Link to finishes panel

Further Design Specifications


All prices include fitting and are subject to VAT, technical restraints, and supply.

Reimo Roof Bed
Ladder attached to Reimo Roof Bed

REIMO ROOF BED

Turn any camper into a 4 berth. Can be retro fitted easily. You may also need a small Reimo ladder which is an additional cost.
Price: £635. If ladder is required additional £195

Reimo Roof Protected with UHS Clearcot

PAINT REIMO ROOF VEHICLE COLOUR PROTECTED WITH UHS CLEARCOAT

Price: £550

Bed extension for VW Camper

FULL WIDTH BED EXTENSION & COUCH SET UP

Includes lateral bed extension wings, bed extension/back rest & arm rest.
Price: £250

Rear window for VW Transporter

REAR TAILGATE OR BARN DOOR GLAZED VW H.I.P GLASS

See behind or out if you wish
Price: £350

VW sliding privacy top locker

SLIDING PRIVACY TOP LOCKER

Completes the toilet compartment privacy & allows for lots of storage of mugs & glasses at convenient height to the kitchen.
Price: £350

Lights and mirror for VW Camper

LIGHTS, MIRROR, & STORAGE PACK

Automatically switched LED lamps on both sides of the sliding wardrobe, one for the mirror & the other for the wardrobe. A storage tray is included on top of the wardrobe. 240v AC & 12v sockets located close by for hairdryers and straighteners to source power from.
Price: £300

Corian, Hanex and Avonite Worktops

SOLID SURFACE WORKTOPS (Corian/Hanex/Avonite etc)

Stylish work tops with a very modern feel. Table is now matched to upstands due to weight of solid surface. Other wood finishes can be chosen subject to availability.
Price: From £450.

Altro Walkway

ALTRO WALKWAY OR ORCHESTRA UPGRADE

Enhanced toughness, better finish & choice of 82 unique finishes.
Price: £65

Concentric Swivel Plate on a VW Campervan seat

RIB CONCENTRIC SEAT SWIVELS

Required for this conversion for both front seats if your vehicle does not have these swivel plates installed. If your Transporter has VW factory swivels then specialist RIB Neptune bases are required so please advise.

Price: Drivers £270. Passenger £200.

Toilet air extraction system for VW Campervan

SOG II TOILET AIR EXTRACTION AND DECOMPOSITION SYSTEM

Remove the unpleasant smells from the toilet via underfloor extraction - help save the environment at the same time without use of chemicals if you so choose. Quiet, low maintenance & low energy consumption. A carbon filter cleans the extracted air to the outside as well.

Price: £295.

Toilet air extraction system for VW Campervan

HIDDEN HOOK UP

Forgetting to disconnect the hook up lead need not fund a body shop & the sides look much cleaner without holes cut in. Choice of two positions available.

Price: £100.

38ltr CAK tanks for VW Transporter

38LTR CAK UNDERFLOOR TANKS C/W HIDDEN FILL UP

Also creates over 30ltrs of extra storage in the kitchen area. Comes with upgraded Sargent EC51 control panel for water level sense and tank sterilisation powder.
Price: £550

Tank de-frost

AUTOMATIC TANK DE-FROST WITH MANUAL MASTER SWITCH WITH LED

A really good idea if you will be using your camper throughout winter. Used in conjunction with Tank Winterisation at additional cost to optimise power consumption.
Price: £240

Tank insulation shown underneath a VW Campervan

TANK WINTERISATION

Works well with the tank de-frost Element, but even tank insulation by itself will prevent light freezing in winter. We insulate the tank, pump and pipes up to the pump.
Price: £195

VW Shower and underfloor CAK Tanks

RECREATIONAL SHOWER WITH UNDERFLOOR CAK TANKS

The brave wash their hair, most rinse kids, dogs, sand, mud & the dishes. Uses 34ltr under floor tank & 30PSI Sureflow pump. Produces 4mtr spray with detachable spray on demand shower hose.
Price: £200

Microwave oven for VW Campervan

KENWOOD COMBINATION MICROWAVE OVEN

800w of all round cooking ability in a compact stylish package. Can only be used on mains hook-up due to consumption.
Price: £400

Smev Grill for VW Campervan

SMEV GRILL WITH LIGHT AND ELECTRONIC IGNITION

If baking is taking it to far but you might want to grill some food.
Price: £600

LPG Gasglow Tank for VW T6/T5

LPG Gasglow Tank for VW T6/T5

INTERNAL LPG GASLOW TANK WITH DUEL FUEL SOLUTION & PAINTED FILLER CAP

Provides a rapid payback saving against Campingaz. Also works with Campingaz via supplied hook up lead and bottle adaptor if LPG is not available.
Price: £400

100w Solar panels for VW Transporter Campervan

120W 2MM FLEXI SOLAR PANEL WITH MPPT INTELLIGENT CONTROLLER & LCD DISPLAY

Wild camp with confidence as you extend wild camping times and increase your ability to go off and explore at a moment's notice. Super important for extending the life of your leisure battery.
Price: £700

Solar panels for VW Transporter Campervan

240W of 2MM FLEXI SOLAR PANELS WITH MPPT INTELLIGENT CONTROLLER & LCD DISPLAY

Go at a moment's notice, wild camp with confidence. Power the Waeco fridge and Webasto Diesel heater and extend the life of your leisure battery with constant hassle free charging.
Price: £1050

Bluemotion battery to battery charging system

BLUEMOTION BATTERY TO BATTERY MPPT INTELLIGENT CHARGING SYSTEM

Essential for Euro 6 Campers, more than worthwhile for Euro 5 campers. Intelligently charge your AGM battery via the 30amp battery to battery charging system while preventing the vehicles electrics from draining your leisure battery (only BMT). If its Bluemotion you have to have it.
Price: £450

Gooseneck lamps for VW Transporter Camper

SINGLE OR TWIN WHITE LED GOOSENECK LAMPS WITH USB SOCKETS

Really useful light for the front cab seats and creating a ideal indirect lighting system.
Price: £70 Single. £130 Twin

Luxury outdoor chairs for Campervan

OUTDOOR LUXURY & POSITION FOLDING CHAIRS & ALUMINIUM TABLE PACK

Optimal seating position for all users with padded headrest. Looks/feels quality. Aluminium table 70 x 70 x 70cm. Super compact space saving design allows for mounting in space behind folding chairs.
Price: £250

White LED downlighters for campervan worktop

WHITE WORKTOP LED DOWNLIGHTERS

Useful as a nightlight with LED switch to the bed side. Brighten the interior, shows off the metallic in the floor & enhances the chrome strip & metallic decoration below
Price: £150

12v usb socket

EXTRA 12V SOCKET OR TWIN FAST CHARGE USB SOCKET 2.1 / 1.1 AMP MOUNTED IN A CHOICE OF 4 LOCATIONS

This is a guideline price and we require more details of use.
Price: £60 for 12v. £75 for twin USB. £90 for both in 1 location.

Swan neck floating table for VW Campervan

SWAN NECK FLOATING TABLE & LEG STORAGE

This upgrade table can be used inside by the front seat & swung outside as well. Will also fit between the driver’s seat & passenger door to allow easy exit.
Price: £100

Webasto Airtop 2000 heater

WEBASTO AIRTOP 2000 DIESEL HEATER

Forget seasons! Forget the cold! Make as much use of your camper as possible. Can be retro fitted via 1st fix. Optional remote mobile app. Thermocall can be installed.
Price: £1100. Or 1st fix wiring only: £60. Thermocall: £465

Reimo Roof Bars and Rails for VW

REIMO ACTIVE ROOF RAILS AND 2 THULE AERO PROFILE CROSS BARS

The complete system ready for easy use with removable lockable bars available in two finishes.
Price: £465 for brushed alloy. £485 for powder coated black alloy

Reimo Top Rail

REIMO TOP RAIL

Extend your internal space, mark your spot as you drive away leaving the clutter behind in your drive away awning.
Some awnings can be bought with sleeping sections within.
Price: £345

Thule 4900 Awning mounted on VW Campervan

THULE 4900 2.6 MTR WIND OUT AWNING MOUNTED ON REIMO MULTI-RAIL

In anthracite or silver with a choice of blue or grey fabric. Mounting the Cassette on the Multi-rail provides protection from rain water.
Price: £965

Thule Bike Rack for a VW Transporter
Video link to Thule Bike Rack for a VW Transporter

THULE VELOSPACE XT3 BIKE RACK

New for 2018 This ones different to the rest. Tailgated vehicles will open with the bikes still mounted on the back.
Worth every penny we feel. Comes almost read to use - about 20 minutes to open and install uprights.
£470. Add the additional 4th bike adapter for another £125

Westfalia quick release tow bar

WESTFALIA QUICK RELEASE TOW BAR

The factory tow bar and control modules integrates to the VW parking sensor system. Will prevent damage to campers legs when removed and minor damage from behind when left in.
Price: £550. With full function charging module for caravans £600

Black plastic bumper for VW Transporter

VW BLACK PLASTIC BUMPER PROTECTOR

Allows stepping in freely without worrying about scratching the paint & reduces the chance of slipping.
Price: £75

VW Wind Deflector

TEAM HEKO WIND DEFLECTORS & REIMO RAIN GUARD PACK

A really useful addition to allow air in via a window gap without water ingress. Especially relevant at night. You also benefit from noise reduction while driving and sun shade. Reimo Rain Guard- channels the water coming off the roof away from you and your electric switches.
Price: £165 with rain guard both sides £120 rain guard for driver only Transporters without Reimo roof requiring wind deflectors only - £75

VW TRansporter Essentials Pack

ESSENTIALS PACK

Includes roof rubber lube applicator, 25mtr 16A hook up lead, Euro adaptor, UK 13A adaptor, 25ltr black waste container, waste pipe extension piece, Fiamma level up chocks & fire extinguisher. Home, UK and abroad this pack covers it all.
Price: £120
