The LWB Transtourer - the Transition between Campervan and Motorhome, making it the most versatile and complete layout available for the VW Transporter.


Designed to fulfil the needs of those that want to explore in style, but with lots of practical storage for longer holidays. Combine this with the comfort of a concealed sit down toilet with built in privacy without sacrificing any of the advantages of a traditional campervan whilst adding extra comfort from larger motorhomes.

We have created flexible sleeping arrangements offering a choice of either twin single beds or a full width double bed as well as creating at least 2 day time modes including a lounge mode. The U shaped lounge area allows you and guests to sit around the table without interfering with galley activity.

The Transtourer can be configured in the rear left hand corner to carry outside luxury table & chairs or extra full height storage.

Concealed hygienic sit down toilet compartment.
Suitable for single or twin side loading doors.

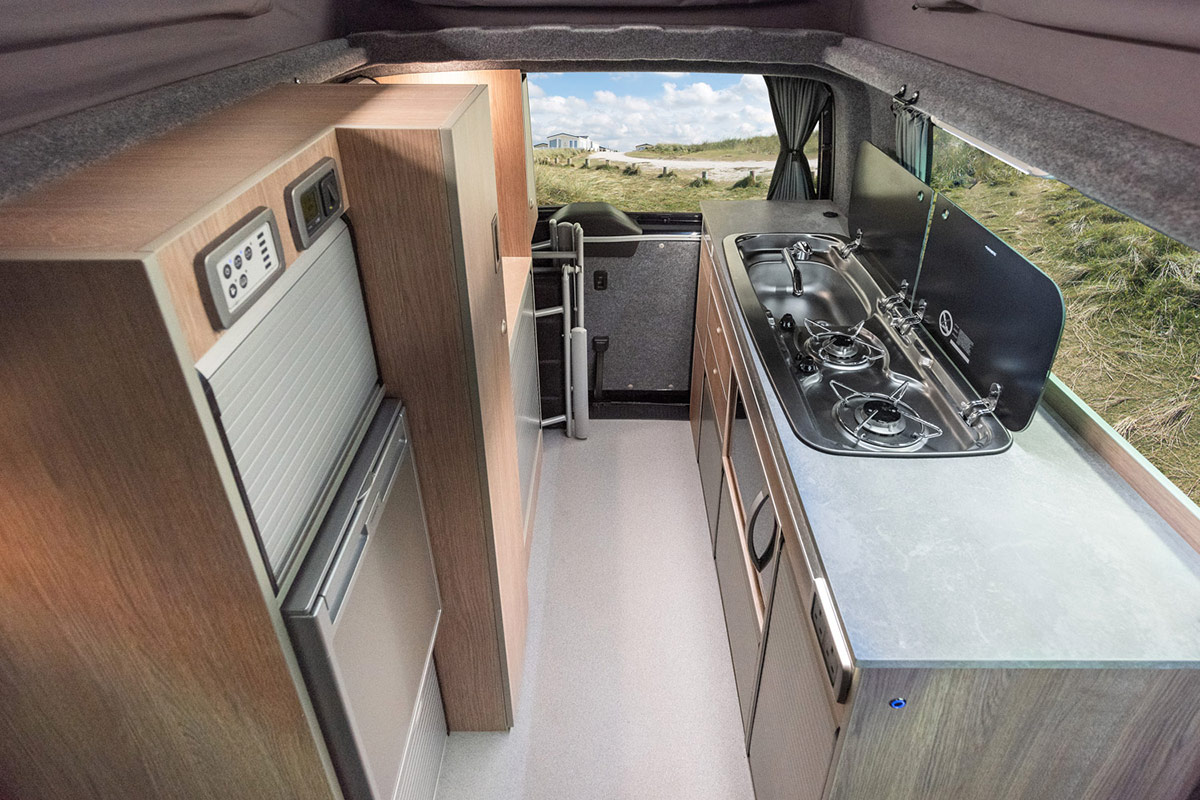

Split living & galley area with raised fridge.
Configurable with foldup table & chairs or storage.
Maximum storage, work space & room to move.
2 & 4 Berth with 4 driving seats.

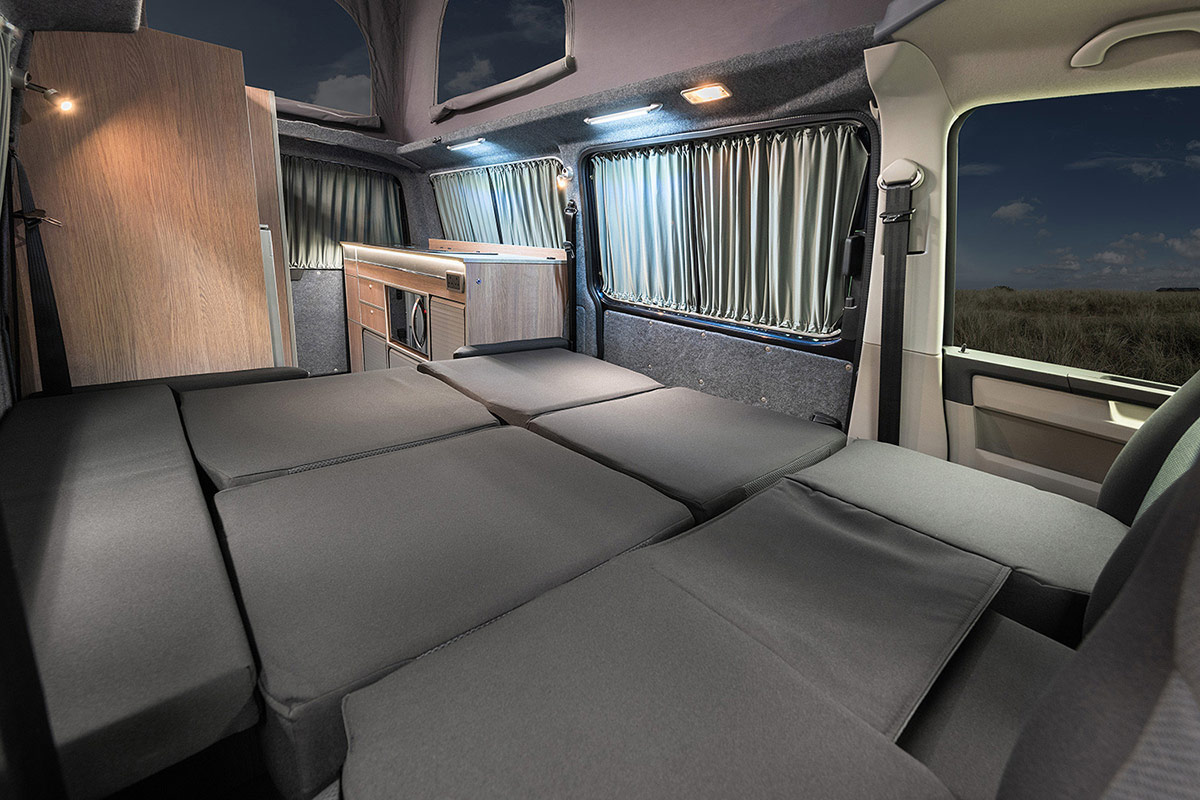

Single & full width bed mode.
Lounge mode with 5 seats
Easily adaptable to all situations.
Built to your specification



Standard LWB Transtourer Specifications


Right hand VW Heat Insulated Privacy sliding window.
Left hand VW Heat Insulated Privacy fixed window.
Left hand rear side panel VW Heat Insulated Privacy window.
Carpet lined & thoroughly insulated.
Two 60CM Rib Neptune TUV approved Pull/Crash tested Seatbeds with 2x 3 point seat belts & headrests. Neptunes built with 20cm front/back sliders plus sideways sliders, allowing twin & double bed mode plus easy reclining. Installed to manufacturers standard, reinforced, bonded & wax oiled underneath.
Rib Neptune Seatbeds boxed in for bed linen storage withmatching Vohringer/Superva laminate & brushed Aluminium corners.
18MM WPB Ply floor with hard wearing easy to clean Altro safety flooring for excellent longevity.
Thetford C-200CWE cassette sit down toilet with electronic flush, installed in a concealed hygienic compartment accessed by vertical Tambour door.
Waeco CR-50 12V Compressor fridge/freezer with brush stainless effect front.
Smev 9022 combi unit 2 burner with Piezo electronic ignition and easy off safety gas control valve.
Dedicated gas bottle compartment with easy on & off bottle connector.
2 x 12Ltr drinking grade water containers contained in a lower compartment accessed by a full width vertical Tambour door system.
Table with sliding system & duel corner cut out.
Sargent EC155 240V/12V 12.5 Amp power management system with remote control both in silver. Remote control panel displays both leisure & vehicle battery levels. Option to switch between batteries with automatic engine battery protection. Engine battery charging function too.
2 matching silver rimmed 240V sockets to be used when hooked up.
1x Twin fast charge USB socket 2.1 & 1.1Amp. 2x 12V sockets, 1 mounted on each worktop or side of vehicle.
1x 110Amp Haze Absorbed Glass Matt Battery (AGM- non spillable) other improved features including fast charging.
Bright 24 white LED switched rotating lamp above hob and sink area.
Bright 24 white LED switched rotating lamp above passenger seatbed for table area.
1x white LED directional & switched gooseneck lamp on the middle right hand side for reading in bed or when in Lounge mode.
1x warm white LED directional & switched recessed Zoe lamp in the Toilet compartment above worktop.
2 vehicle courtesy lamps above side and rear door.
1 large cutlery draw & 1 large plate & serving items draw in kitchen cabinet.
Large clothes/store to the right of vehicle kitchen accessed by vertical full height Tambour door with internal shelf midway up.
Bottle/tall thin object storage accessed by vertical Tambour door system at left of kitchen above gas compartment.
Floor mounted larder accessed by full width vertical Tambour door system under kitchen draws.
Upper Larder/miscellaneous storage compartment under hob if a grill is not selected accessed by vertical Tambour door system.
Large full height sliding wardrobe which doubles up as privacy screen with folding hanging rail & lower storage area as standard accessed by pull handle & locking button.
2x separate storage areas located behind & above the toilet compartment. Sargent power management system located in upper.
Large clothing storage area above fridge accessed by full width vertical Tambour door system.
Large general item store under fridge accessed by full width vertical Tambour door system.
All cabinet compartments fully ventilated for heat dispersion and aeration.
2x de-pressurization/breathing vents in rear of vehicle.
Silent Gliss Aluminium curtain rail system complete with popper kit mounted ready for curtain installation.
New side door step & full width rear load entry cover plate.
Brushed Aluminium powder fire extinguisher.
Good internal front cab thermal insulation blinds, set of 3.
Gas safe certificate from inspection by external engineer.
Full handover with explanation of use & limited out of hour’s telephone back up service.
All documentation and instructions from fitted devices and components.



Standard LWB Transtourer layout costs


All prices include fitting & are subject to VAT, technical restraints, & supply.

£17,400+VAT LWB Transtourer with Reimo rear open elevating roof

£20,880 inclusive of VAT at 20%

£16,650+VAT LWB Transtourer with Reimo rear open elevating roof without VW HIP glass side windows (such as the Kombi as a base vehicle) still included is a left hand rear side panel in matching VW glass.

£19,980 inclusive of VAT at 20%



Link to finishes panel





Further Design Specifications


All prices include fitting and are subject to VAT, technical restraints, and supply.

Reimo Roof Bed
Ladder attached to Reimo Roof Bed

REIMO ROOF BED

To turn any camper into a 4 berth. Can be retro fitted easily. You may also need a small Reimo ladder which is an additional cost.
Price: £635. plus £195. if ladder is required

Reimo Roof Protected with UHS Clearcot

PAINT REIMO ROOF VEHICLE COLOUR PROTECTED WITH UHS CLEARCOAT

Price: £650

Bed extension for VW Camper

FULL WIDTH BED EXTENSION & COUCH SET UP

Includes lateral bed extension wings, bed extension/back rest & arm rest.
Price: £250

Reimo Child Safety Net

REIMO CHILD SAFTEY NET

prevent young children from falling or jumping on you in the morning.
Price: £200

Rear window for VW Transporter

REAR TAILGATE OR BARN DOOR GLAZED VW H.I.P GLASS

See behind or out if you wish
Price: £330

VW sliding privacy top locker

SLIDING PRIVACY TOP LOCKER

Completes the toilet compartment privacy & allows for lots of storage of mugs & glasses at convenient height to the kitchen.
Price: £350

Lights and mirror for VW Camper

LIGHTS, MIRROR, & STORAGE PACK

Automatically switched LED lamps on both sides of the sliding wardrobe, one for the mirror & the other for the wardrobe. A storage tray is included on top of the wardrobe. 240v AC & 12v sockets located close by for hairdryers and straighteners to source power from.
Price: £300

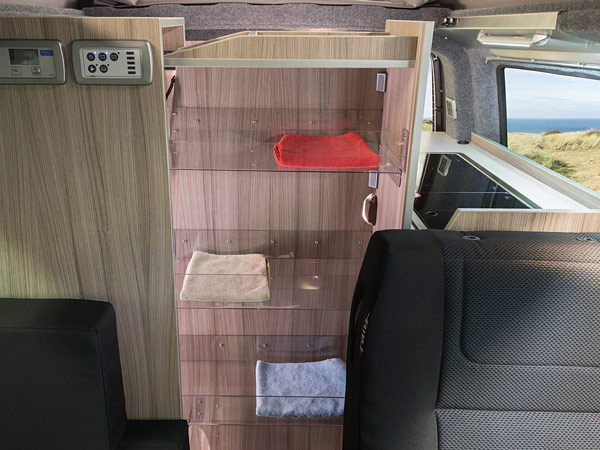

Transparent shelving for VW Campervan

UNBREAKABLE CLEAR PETG SHELVING IN WARDROBE

4 clear PETG shelves in total, 1 large & medium for each of you and an extra-large at the bottom. About a suitcase full worth of clothing.
Price: £350

38ltr CAK tanks for VW Transporter

38LTR CAK UNDERFLOOR TANKS C/W HIDDEN FILL UP

Also creates 24lars of extra storage in the kitchen area. Comes with upgraded Sargent EC51 control panel for water level sense.
Price: £550

Corian, Hanex and Avonite Worktops

SOLID SURFACE WORKTOPS (Corian/Hanex/Avonite etc)

Stylish work tops with a very modern feel. Table is now matched to upstands due to weight of solid surface. Other wood finishes can be chosen subject to availability.
Price: From £450. depending on choice.

Altro Walkway

ALTRO WALKWAY OR ORCHESTRA UPGRADE

Enhanced toughness, better finish & choice of 82 unique finishes.
Price: £65

Concentric Swivel Seat for VW Camper

RIB CONCENTRIC SEAT SWIVELS

Required for this conversion for both front seats if your vehicle does not have these swivel plates installed. If your Transporter has VW factory swivels then specialist RIB Neptune bases are required so please advise.
Price: Drivers £250. Passenger £190.

Toilet air extraction system for VW Campervan

SOG II TOILET AIR EXTRACTION AND DECOMPOSITION SYSTEM

Remove the unpleasant smells from the toilet via underfloor extraction - help save the environment at the same time without use of chemicals if you so choose. Quiet, low maintenance & low energy consumption. A Carbon filter cleans the extracted air to the outside as well.

Price: £295.

Toilet air extraction system for VW Campervan

HIDDEN HOOK UP

Forgetting to disconnect the hook up lead need not fund a body shop & the sides look much cleaner without holes cut in. Choice of Two positions available.

Price: £100.

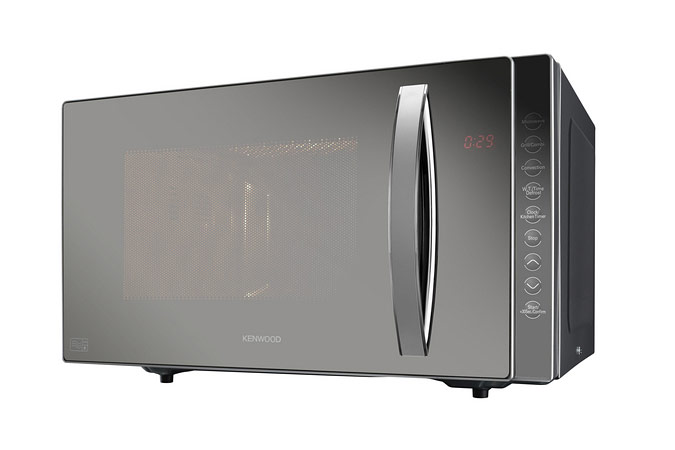

Microwave oven for VW Campervan

KENWOOD COMBINATION MICROWAVE OVEN

800w of all round cooking ability in a compact stylish package. Can only be used on mains hook-up due to consumption.
Price: £400

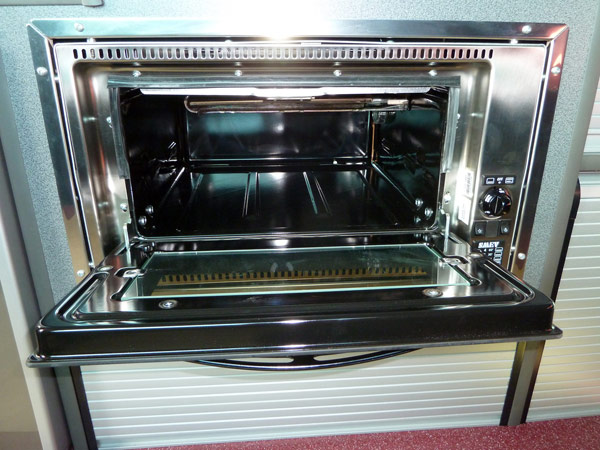

Microwave oven for VW Campervan

SMEV OVEN/GRILLE WITH ELECTRONIC IGNITION

Completes a kitchen, for those that like to cook anywhere.
Price: £700

Microwave oven for VW Campervan

SMEV GRILLE WITH LIGHT & ELECRONIC IGNITION

If baking is taking it to far but you might want to grille some food.
Price: £600

LPG Gasglow Tank for VW T6/T5

LPG Gasglow Tank for VW T6/T5

INTERNAL LPG GASLOW TANK WITH DUEL FUEL SOLUTION

and painted filler cap. Provides a rapid payback saving against Campingaz. Duel fuel as works with Campingaz if LPG is not available via supplied cylinder adapter & hook up lead.
Price: £400

Tank de-frost

AUTOMATIC TANK DE-FROST WITH MANUAL MASTER SWITCH WITH LED

A good idea if you are thinking of visiting the Alps in Winter!
Price: £240

VW Top Locker with shelf

TANK WINTERISATION

Works well with the tank de-frost, but even tank insulation by itself will prevent light freezing in winter.
Price: £175

100w Solar panels for VW Transporter Campervan

100W 2MM FLEXI SOLAR PANEL WITH MPPT INTELLIGENT CONTROLLER & LCD DISPLAY

Wild camp with confidence as you extend wild camping times and increase your ability to go off and explore at a moment's notice. Super important for extending the life of your leisure battery.
Price: £700

Solar panels for VW Transporter Campervan

200W of 2MM FLEXI SOLAR PANELS WITH MPPT INTELLIGENT CONTROLLER & LCD DISPLAY

Go at a moment's notice, wild camp with confidence. Power the Waeco fridge and Webasto Diesel heater and extend the life of your leisure battery with constant hassle free charging.
Price: £1050

Bluemotion battery to battery charging system

BLUEMOTION BATTERY TO BATTERY MPPT INTELLIGENT CHARGING SYSTEM

Essential for Euro 6 Campers, more than worthwhile for Euro 5 campers.Intelligently charge your AGM battery via the 30amp battery to battery charging system while preventing the vehicles electrics from draining your leisure battery (only BMT). If its Bluemotion you have to have it.
Price: £450

Gooseneck lamps for VW Transporter Camper

SINGLE OR TWIN WHITE LED GOOSENECK LAMPS

Really useful light for the front cab seats and creating a ideal indirect lighting system.
Price: £70 Single. £130 Twin

VW Shower and underfloor CAK Tanks

RECREATIONAL SHOWER WITH UNDERFLOOR CAK TANKS

The brave wash there hair, most rinse kids, dogs, sand, mud & the dishes. Uses 48ltr under floor tanks & 18ltr/min pump. Produces 5M spray with detachable spray on need shower hose
Price: £200

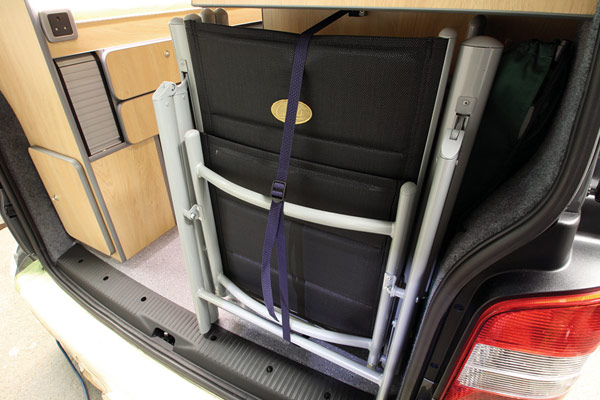

Luxury outdoor chairs for Campervan

OUTDOOR LUXURY & POSITION FOLDING CHAIRS & ALUMINIUM TABLE PACK

Optimal seating position for all users with padded headrest. Looks/feels quality. Aluminium table 70 x 70 x 70cm. Super compact space saving design allows for mounting in space behind folding chairs.
Price: £250

White LED downlighters for campervan worktop

WHITE WORKTOP LED DOWNLIGHTERS

Useful as a nightlight with LED switch to the bed side. Brighten the interior, shows off the metallic in the floor & enhances the chrome.
Price: £150

Remote control for changing downlighters

REMOTE CONTROL COLOUR CHANGING LED DOWNLIGHTERS

Will fade, strobe, change speed or select any colour
Price: £350

12v usb socket

EXTRA 12V SOCKET OR TWIN FAST CHARGE USB SOCKET

2.1 / 1.1 AMP MOUNTED IN A CHOICE OF 4 LOCATIONS this is a guide line price & we require more details of use.
Price: £60 for 12V. £75 for Twin USB. £90 for both in 1 location.

VW Transporter Side Door Lamp

SIDE DOOR STEP COURTESY LAMP, LOWER IN STEP

Price: £70

Swan neck floating table for VW Campervan

SWAN NECK FLOATING TABLE & POST MOUNTED

This table can be used inside by the front seat & swung outside as well. Will also fit between the driver’s seat & passenger door to allow easy exit.
Price: £100

12v usb socket

EXTRA 240V AC SOCKET IN MIDDLE OF VEHICLE

Useful if you want to run an electric heater in the lounge area whilst hooked up.
Price: £125

Webasto Airtop 2000 heater

WEBASTO AIRTOP 2000 DIESEL HEATER

Forget seasons! Forget the cold! make as much use of your camperas possible. Can be retro fitted via 1st fix. Optional Remote mobile App. Thermocall can be installed.
Price: £1100. Or 1st fix wiring only: £60. Thermocall: £465

Microwave oven for VW Campervan

WEBASTO AIRTOP 2000 DIESEL HEATER PROGRAMMABLE TIMER CONTROL UNIT WITH BACKLIGHT

Useful if you want a warm vehicle on your return or first thing in the morning. Can be retro fitted.
Price: £250

Reimo Roof Bars and Rails for VW

REIMO ACTIVE ROOF RAILS AND 2 THULE AERO PROFILE CROSS BARS

The complete system ready for easy use with removable lockable bars available in two finishes.
Price: £425. For Brushed Alloy, £450. For Powder coated black Alloy

Reimo Top Rail

REIMO TOP RAIL

Extend your internal space, mark your spot as you drive away leaving the clutter behind.
Price: £345

Fiamma awning mounted on VW Campervan

FIAMMA F45S 2.6MTR WIND OUT AWNING MOUNTED ON REIMO TOPRAIL

In Black, silver or White case with a choice of Blue or Grey Fabric. Mounting the F45 on the Toprail provides protection from rain water.
Price: £975

Thule Bike Rack for a VW Transporter
Video link to Thule Bike Rack for a VW Transporter

THULE VELOSPACE XT3 BIKE RACK

New for 2018 This ones different to the rest. Tailgated vehicles will open with the bikes still mounted on the back.
Worth every penny we feel. Comes almost read to use - about 20 minutes to open and install uprights.
£430. Add the additional 4th bike adapter for another £110

Westfalia quick release tow bar

WESTFALIA QUICK RELEASE TOW BAR

The factory Tow Bar and Control Modules integrates to the VW Parking Sensor system. Also Prevents damage to campers legs when removed and minor damage from behind when left in.
Price: £550. or with full function charging module for caravans Price: £600

Black plastic bumper for VW Transporter

VW BLACK PLASTIC BUMPER PROTECTOR

Allows stepping in freely without worrying about scratching the paint & reduces the chance of slipping.
Price: £75

VW Wind Deflector

VW WIND DEFLECTORS

A really useful addition to allow air in via a window gap without water ingress. Especially relevant at night. You also benefit from Noise reduction while driving.
Price: £75

VW TRansporter Essentials Pack

ESSENTIALS PACK INCLUDES ROOF RUBBER LUBE APPLICATOR, 25M 16A HOOK UP LEAD, EURO ADAPTER, UK 13A ADAPTER, 25LTR BLACK WASTECONTAINER, WASTE PIPE EXTENSION PIECE AND FIAMMA LEVEL UP CHOCKS

home, UK and abroad this pack covers it all.
Price: £115
